| Item | Specifications | Remark |
| Model No. | TWE-WM10KWH | |
| Nominal Voltage | 51.2V | |
| Nominal Capacity | 200Ah | Customized 5KWH/10KWH/15KWH |
| Dimensions | 715*415*250mm | Height*Width*Depth |
| Cycle Life | ≥6000 times | @0.5C 80% DOD |
| Charge Cut-off Voltage | 58.4V | |
| Discharge Cut-off Voltage | 44.8V | |
| Standard Charge Current | 50A | |
| Max Charge Current | 100A | Recommended: 50A |
| Standard Discharge Current | 50A | |
| Max Continuous Discharge Current | 100A | |
| Max Peak Discharge Current | 200A | |
| Operation Temperature | Charge: 0℃~45℃, Discharge: -20℃~60℃ | |
| Storage Temperature | 0℃~35℃ | |
| Internal Resistance | ≤35mΩ | |

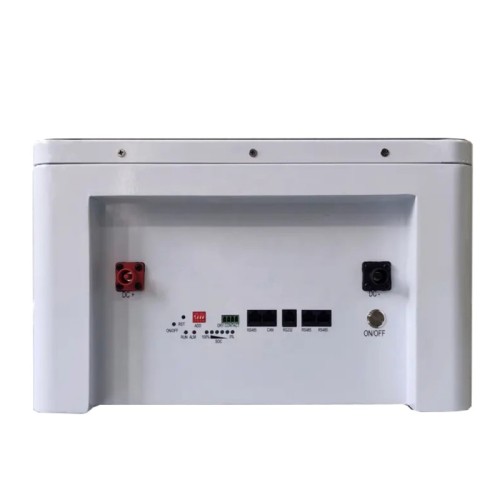

| Communication Method | RS485, RS232,CAN | |
| Housing Material | Sheet metal | Protection class: IP21 |
| Weight | Approx. 89kg | |
| Protection | Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc. |
Reliable and Long-Lasting Energy Solution
Our 10kWh LiFePO4 Battery is built to last with a life expectancy of over 6000 cycles at 80% depth of discharge. It provides a dependable power source for your home energy needs, ensuring you have energy when you need it most.
High Compatibility and Easy Installation

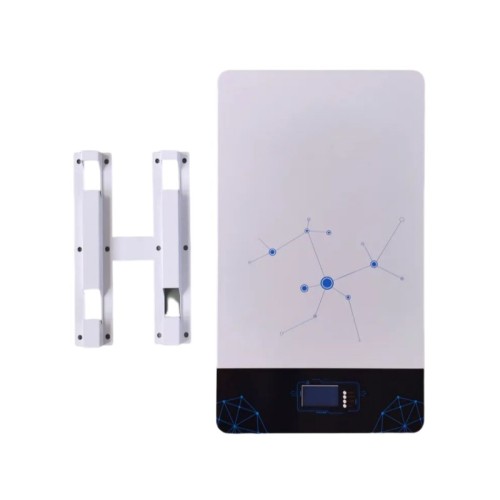

This battery system is compatible with most market-leading inverters, including Goodwe, Deye, and Growatt, making it a versatile choice for various home setups. Its wall-mounted design allows for easy installation, saving space while optimizing energy management.
Safe and Efficient Power Storage
Equipped with a sophisticated Battery Management System (BMS), our LiFePO4 battery ensures high safety and operational reliability. It efficiently manages charge and discharge processes, protecting against overcharge, over-discharge, and temperature fluctuations.
Yichun Topwell Power Co., Ltd (Trademark:TWE) established in 2002, is a high-tech enterprise focusing on the R&D, production and sales of lithium polymer batteries, lithium ion batteries, lithium iron phosphate batteries, and lithium thionyl chloride batteries. Products are widely used in consumer electronics, Internet of Things, smart home, medical, vehicle, home and outdoor energy storage, and have obtained CE, RoHS, Reach, UN38.3, IEC62133, CB, UL, MSDS certifications, etc.
Topwell moves on by providing reliable, efficient and intelligent battery solutions to meet different energy needs. We have efficient engineering, production and quality management teams. From raw material procurement, to production, testing, sales and after-sales service, all steps have been controlled by a strict quality management system. Our factory has passed ISO9001, IS014001, BSCI certification, SGS, Intertek audit. With the advantages in price, quality and service, we have established long-term and stable cooperative relationships with many well-known brands. Topwell always attached the great importance to the long term cooperation with customers. No matter the order is big or small, we do our best to support you the highest quality with favorable price. We believe that Topwell Power can be your best battery supplier!
